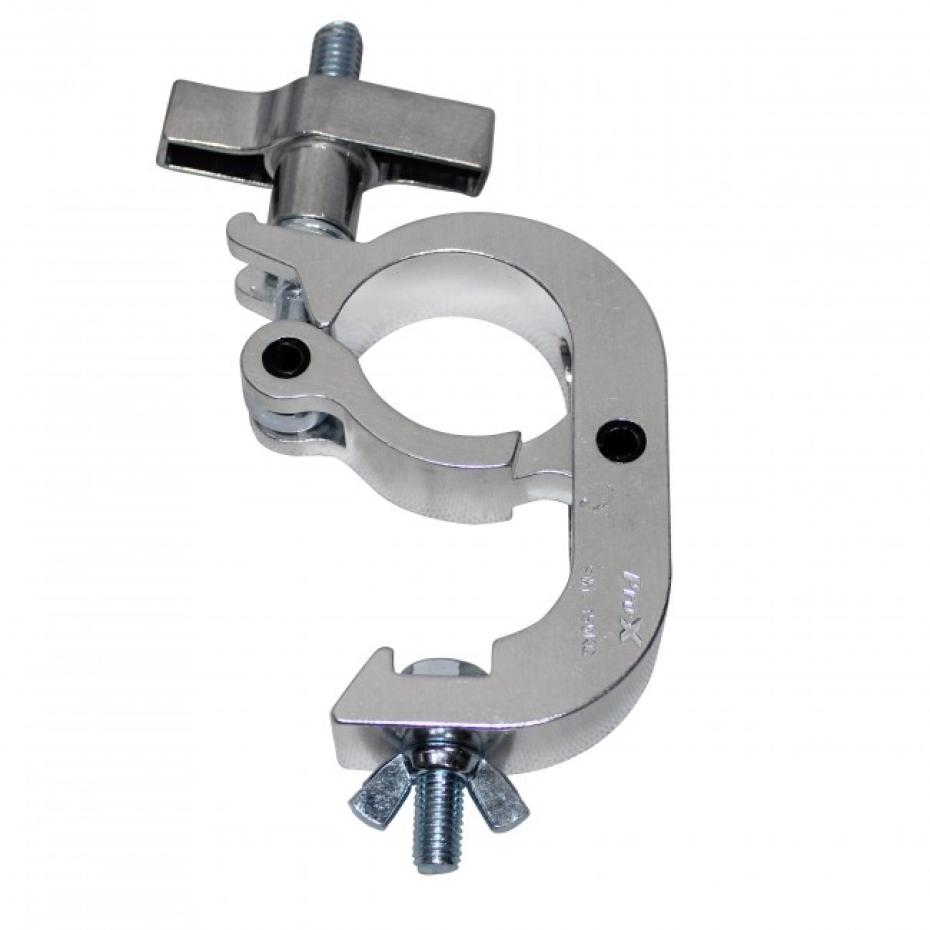

ProX T-C5H | Trigger Clamp W/Big Wing

ProX TC5H  (ProX T C5H)

ProX T-C5H Heavy Duty Hook Trigger-Style Aluminum Clamp W/Big Wing

Description
The ProX T-C5H Hook Trigger Clamp With Large Wing Nut is a 360 wrap-around tube truss clamp designed to securely mount heavy lighting fixtures to truss chords or other 2" OD pipes/tubes.   The hook design will support the load while tightening and securing the clamp to a tube.

Compatible with F31-F32-F33-F34-F44P Truss Chords




Features
Big Wing for Ease of Use
Heavy Duty Hook Trigger Style Clamp For 2" (50mm) Tubing
Minimum Tubing Diameter 1.9" (48mm)
Maximum Tubing Diameter 2.008" (51mm)
Max Load Capacity 500 lbs (226.75 kgs)
Unit Weight - 1.2 lbs.
TUV Approved



To Fit
Standard 2" Size Truss Configurations.


Dimensions
7.75"L x 4.00"W x 1.10"H
Weight: 1.20 lbs

Shipping Dimensions
8.00"L x 4.25"D x 1.35"H
Shipping Weight: 1.30 lbs
