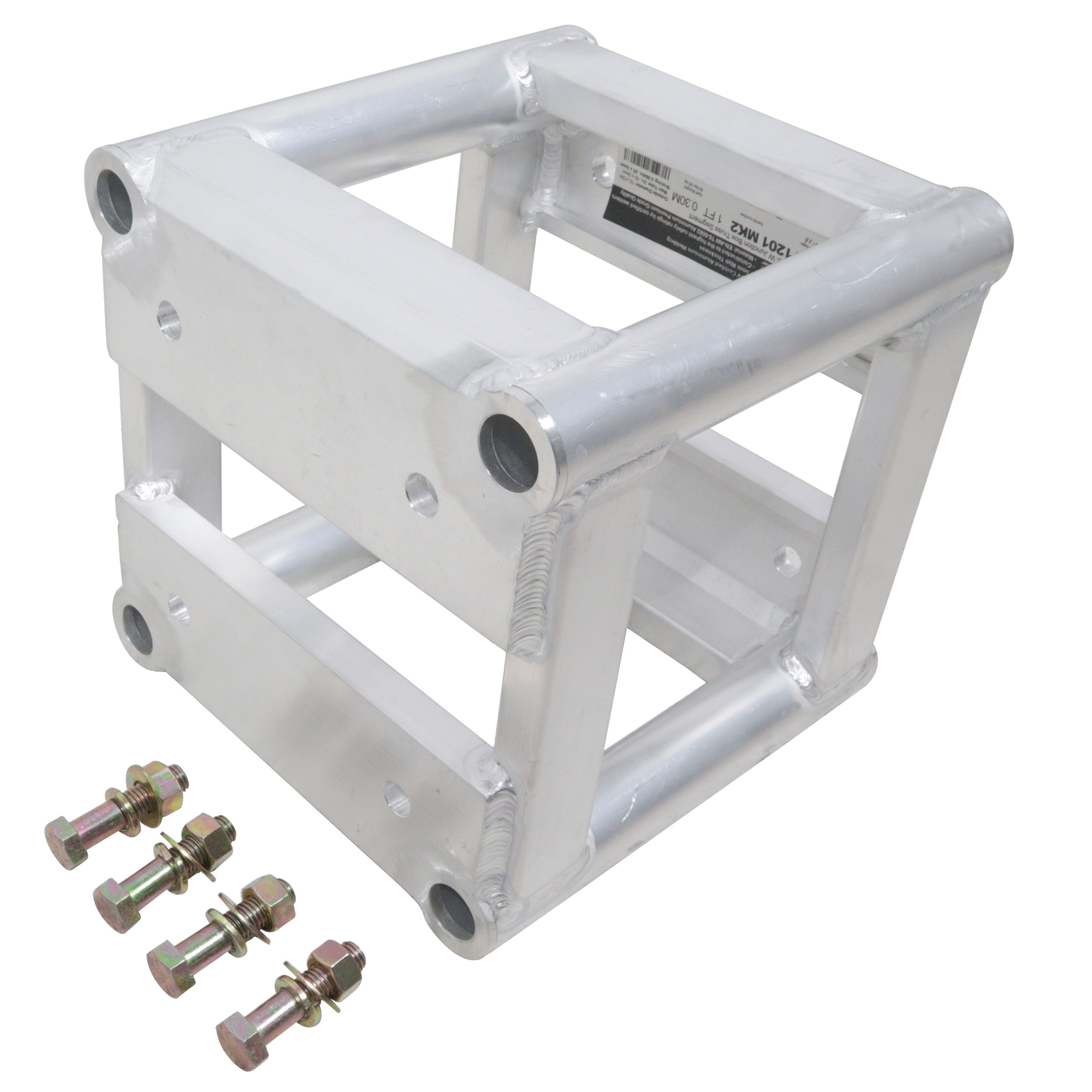

ProX XT-BT1201MK2 | 1ft BoltX 12in Box Truss | 3mm Wall with Bolt Connection

Pro X XT-BT1201 MK2  (ProX XT-BT1201-MK2)

Professional Box Truss Segment

ProX XT-BT1201MK2 is a 1 ft BoltX 12 in professional box truss segment designed for stage lighting, concert production, event structures, and other load-rated truss applications. Its 6082-T6 aluminum construction, 3mm wall tubing, and bolted end-plate design provide a durable, compatible solution for professional setups.

ProX XT-BT1201MK2 Competitive Differences

• 1 ft BoltX 12 in box truss segment with 12 in x 12 in exterior dimensions
• 3mm wall thickness on both the 2 in outer tubes and 1 in diagonal bracing
• Industry-standard 6.75 in x 6.75 in bolt pattern with 5/8 in holes
• Heavy-duty welded aluminum end plates with circular corner rings to help protect chord ends
• Includes attachment bolts, nuts, flat washers, and lock washers

ProX XT-BT1201MK2 Description

The ProX XT-BT1201MK2 is built for professionals who need a compact 1 ft box truss section for lighting rigs, production structures, displays, and compatible 12 in bolted truss systems. Its BoltX design uses a secure bolted connection format and industry-standard dimensions for flexible integration with many other 12 in professional box truss products.

The truss is constructed from 6082-T6 aluminum alloy and welded to TÜV standards by GSI SLV-certified welders. With 2 in outer chord tubing, 1 in diagonal bracing, and 3mm wall thickness, it is designed for strength, consistency, and long-term performance in demanding event environments.

ProX also includes practical protection details, including circular rings at each corner to help reduce damage to the main chord ends during handling, transport, and setup. Each section is load tested and inspected during manufacturing and quality control for dependable professional use.

XT-BT1201MK2 Features

• 1 ft BoltX 12 in professional box truss segment
• 12 in high x 12 in wide bolted box truss design
• Compatible with most 12 in professional box truss using a 6.75 in bolt center pattern
• Heavy-duty aluminum end plate design welded on both sides
• Circular corner rings help reduce damage to main chord ends
• Load tested and inspected during manufacturing and quality control
• Natural aluminum finish
• Recommended for use with proper load calculations and qualified engineering review for complex configurations

XT-BT1201MK2 Specifications

• Truss Type: Professional box truss segment
• Length: 1 ft (12 in)
• Exterior Dimensions: 12.00 x 12.00 x 12.00 in
• Weight: 18.00 lb
• Outer Tube Diameter: 2 in
• Outer Tube Wall Thickness: 3mm / 1/8 in
• Diagonal Tube Diameter: 1 in
• Diagonal Tube Wall Thickness: 3mm / 1/8 in
• Bolt Pattern: 6.75 x 6.75 in
• Bolt Hole Size: 5/8 in
• Material: 6082-T6 aluminum alloy
• Finish: Natural aluminum
• Shipping Dimensions: 14.00 x 13.00 x 13.00 in
• Shipping Weight: 19.00 lb
• UPC: 019372412267

What's In The Box

• ProX XT-BT1201MK2 1 ft BoltX 12 in box truss segment
• Four 5/8 in - 11 x 2.5 in attachment bolts
• Nuts
• Flat washers
• Lock washers
